The Meters tab on Building Detail lists every meter at a building. From there, you can open a meter, view its profile, and add, correct or remove its readings.
This article will help you:
- Find a building's meters
- View a meter's profile
- Add, edit and delete meter readings
- Understand why a reading can't be changed
Before you start
- Adding, editing and deleting readings depends on your role. See Who can use what.
- Readings inside a locked reporting period can't be changed. See Locking data for a reporting period.
- Readings on meters whose data comes in automatically, through Connect or Bill Upload, can't be changed by hand.
- Adding, changing and deleting meters in Navigate is coming soon. Until then, use Core: select the grid icon at the top left of the side navigation, then Core.
See a building's meters
Open a building and select the Meters tab. The table shows each meter's name, type and the spaces it serves. Select a meter to open its page, with its readings.

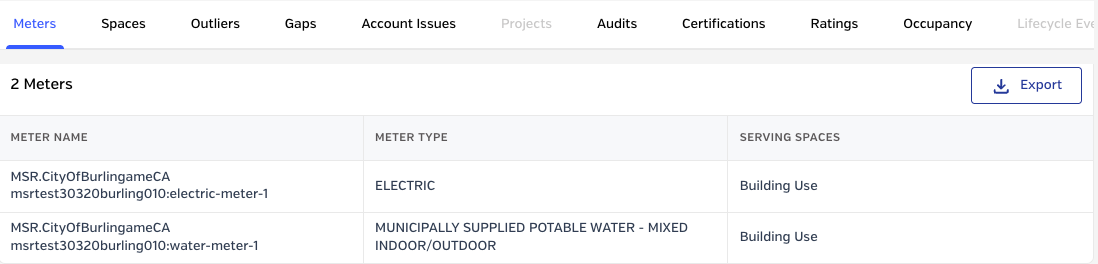

A building's Meters tab, listing each meter's name, type and serving spaces
View a meter's profile
On the meter's page, select View Meter Profile. The profile opens in a panel with four sections.
| Section | What it shows |
| Meter Details | Name, type, category, units, currency, status, activation and deactivation dates, and the meter's ENERGY STAR® sync status and share level |
| Meter Notes | Notes about the meter |
| Spaces Served | The spaces this meter measures |
| Renewables | Tracking instrument and whether the meter is fully off-site renewable |
Add a reading
1. On the meter's page, select + Add Meter Reading.
2. Enter Period Start, Period End and Usage. These are required.
3. Fill in the other fields the meter shows:
- Cost is required, except on on-site renewable meters, which show Exported instead.
- Electric meters also show Demand and Demand Cost. Fill in both or neither.
- Water meters also show Sewer Spend.
4. If the reading is an estimate, select Estimated Reading and choose an Estimate Source. You can add an Estimate Note of up to 1,500 characters.
5. Select Save.

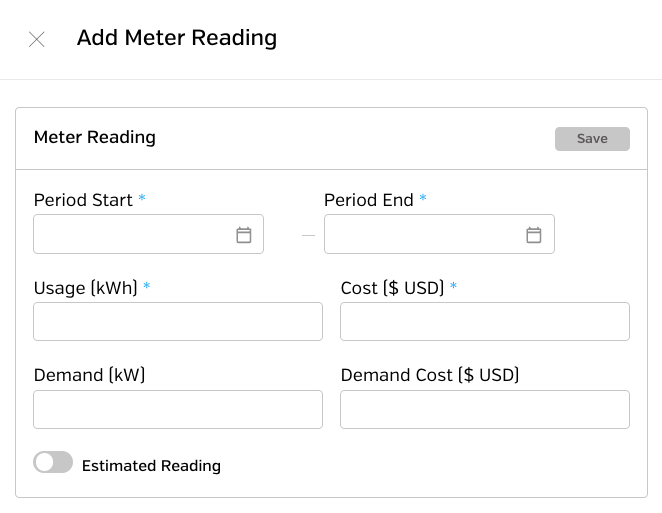

The Add Meter Reading panel for an electric meter, with Period Start, Period End, Usage, Cost, Demand and Demand Cost
The reading's dates must fall between the meter's activation and deactivation dates, and outside any locked period.
Edit or delete a reading
1. On the meter's page, select the reading in the table. It opens in a panel on the right.
2. In the Meter Reading section, select Edit, change the fields and select Save.
3. To remove the reading instead, select Delete Reading and confirm.
Common questions
Why can't I add, edit or delete readings on a meter? There are three common reasons: your role doesn't allow it, the reading falls inside a locked period, or the meter's data comes in automatically through Connect or Bill Upload.
Can I add or edit a meter here? Not yet. It's coming to Navigate soon. Until then, add, change or delete meters in Core.
What can I choose as an Estimate Source? Customer, Utility or Third Party. Estimates that Measurabl created show Measurabl and can't be edited.
Are duplicate readings blocked? Not when you save. A reading that overlaps another on the same meter is flagged as an outlier, Duplicate in Same Meter, and its panel offers Delete Duplicate Reading.
Do my reading changes go to ENERGY STAR® Portfolio Manager? For buildings synced with ENERGY STAR®, yes, if the meter is shared with Full Access. Edits and deletes are sent right away. New readings are sent on the next ENERGY STAR sync, so they can take a little while to appear there. On a meter shared Read Only, edits to synced readings can't be saved, and new or deleted readings change only in Measurabl.
Can I see who changed a reading? Yes. Go to Data Manager > Reports and run the Audit Report. It lists each change to buildings, meters, readings, spaces, ratings and certifications, with who made it.
Can I export readings? Yes. A meter's readings and a building's meters export to Excel.
